Ravin R500E Crossbow

In stock
Item Number
10-80036
As low as $3,299.99

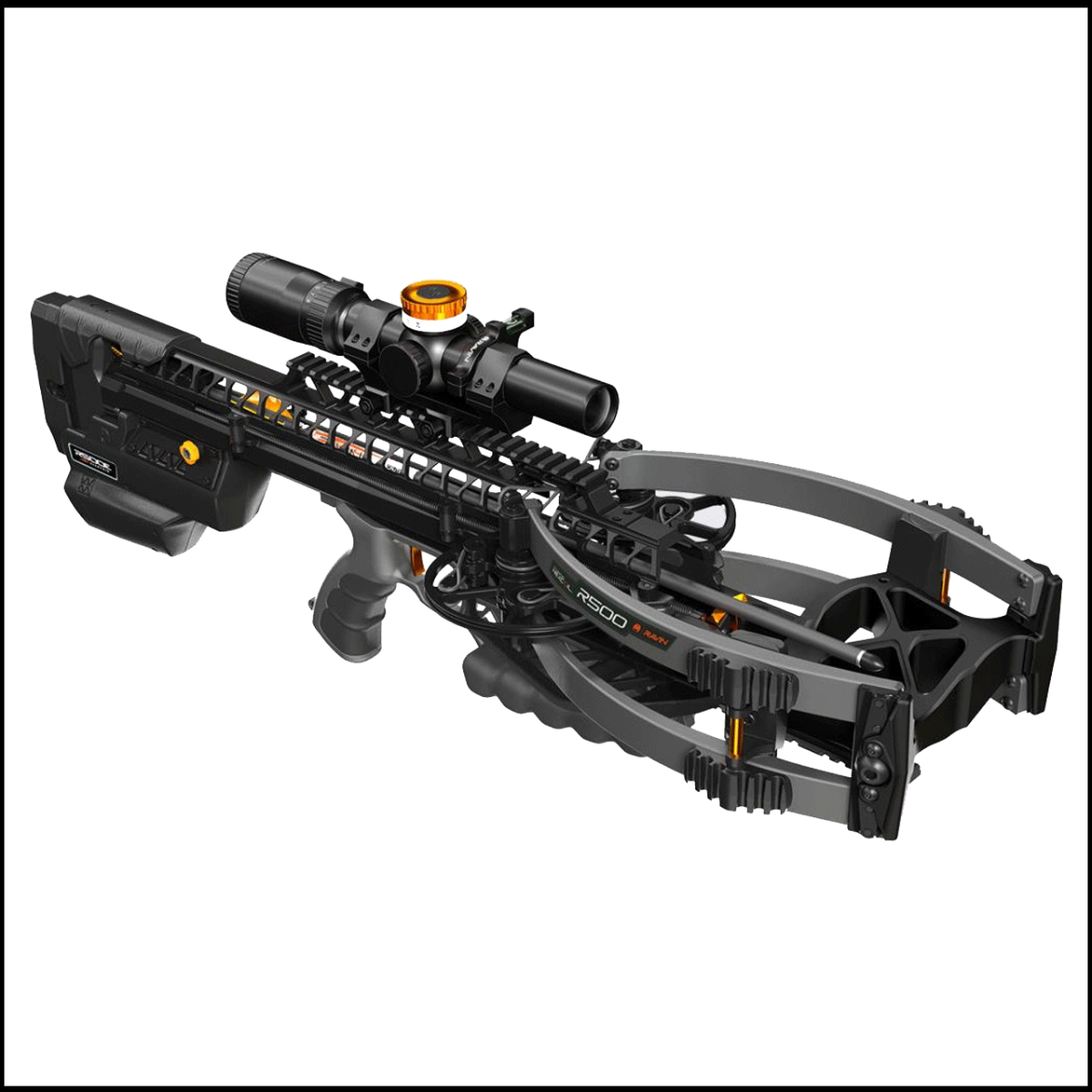

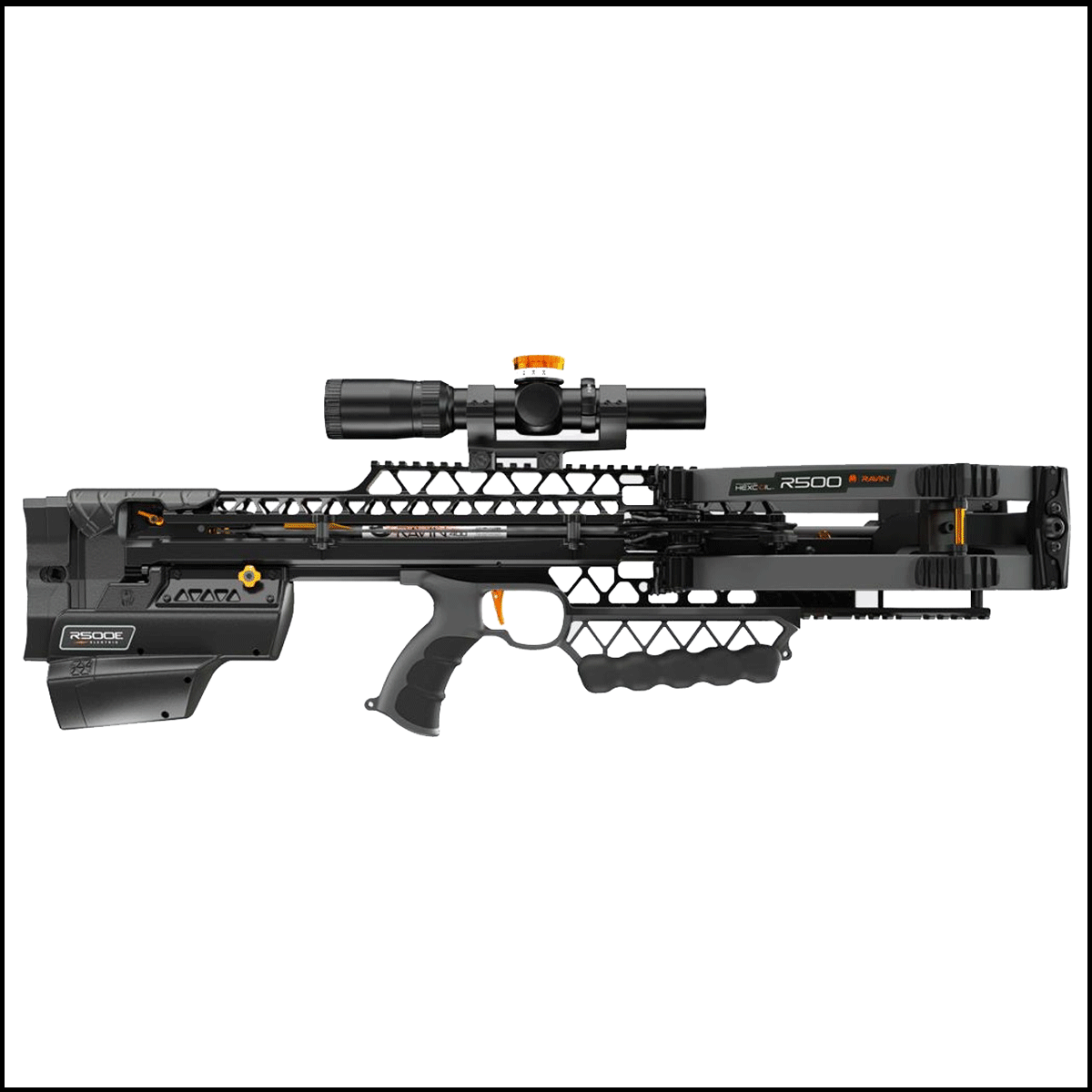

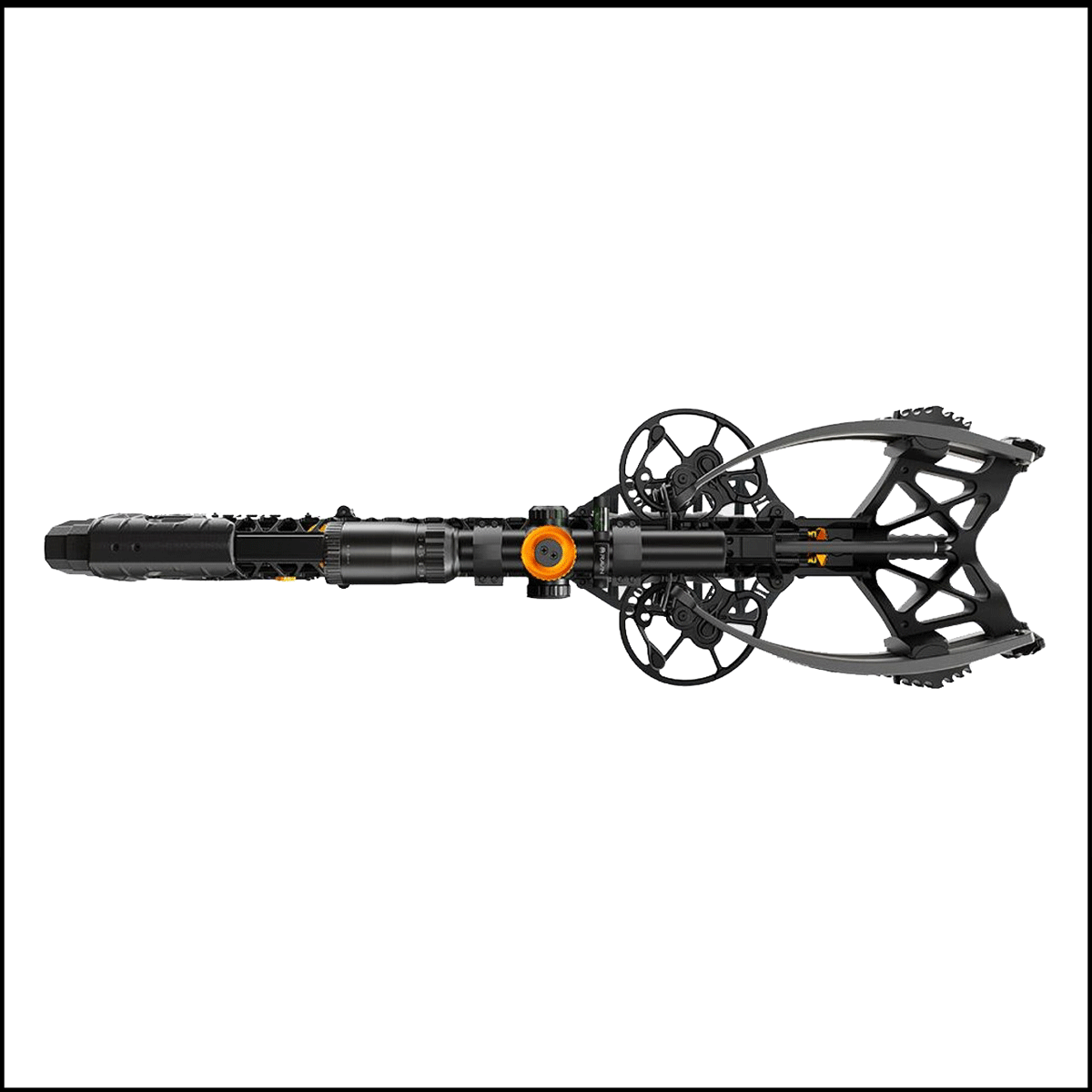

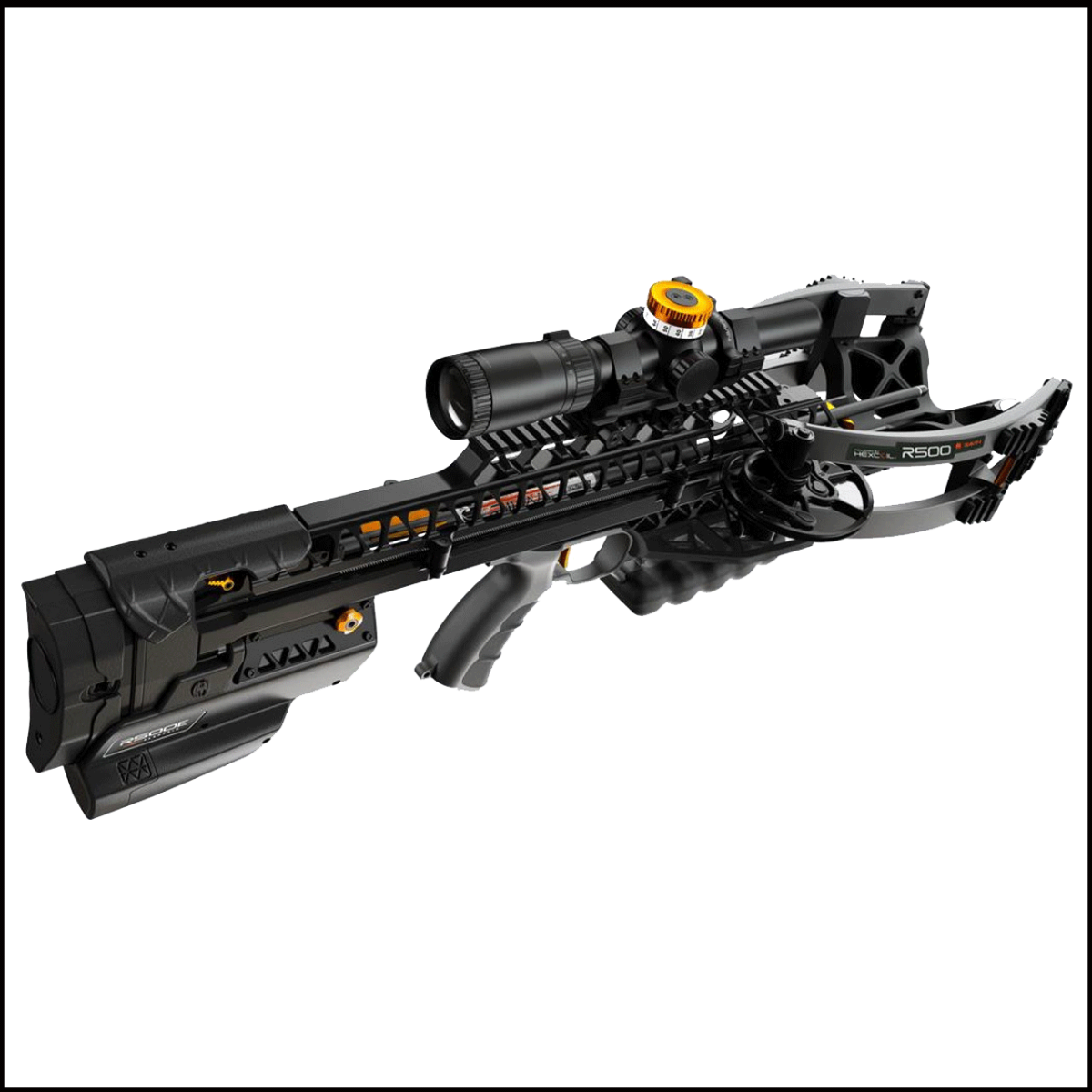

Ravin R500E Crossbow
Ravin R500E Crossbow Ravin R500E Crossbow Ravin R500E Crossbow Ravin R500E Crossbow
Electric Drive System
The new Ravin Electric Drive System changes the game. With an easy push of a button, the hunter can automatically cock or decock their bow. The Electric Drive Kit consists of a motor unit that attaches to the stock and is quickly detachable to store in a pack or pocket.
Versadrive Cocking System
The internal screw drive moves the Trac Trigger Firing System (TTFS) back and forth and an internal clutch eliminates over-cocking, allowing cocking and uncocking to be stopped or resumed at any time during the process.
Hexcoil Cam System
A proprietary system rotates cams an incredible 360 degrees, reforming traditional crossbows into the fastest, most accurate and compact designs ever seen.
Silent Cocking
The Fully Integrated Silent Cocking System works in. conjunction with the Trac Trigger Firing System and includes a built-in one way bearing removing any noise, resulting in a completely silent draw. The cocking mechanism allows you to stop the draw cycle at any time during the cocking process. They'll never hear you coming.
Trac-Trigger™ Firing System
A patented built-in trigger mechanism that slides forward on the rail and clasps directly to the precise center of the string every time the bow is drawn, allowing for straight-line nock travel. This unique Helicoil advantage creates a perfectly balanced draw for unmatched down range accuracy with every shot.
Frictionless™ Flight System
This patented technology allows the arrow and string to free float above the rail, eliminating friction for consistent accuracy and increased string and cable life. This unique HeliCoil advantage delivers astounding target accuracy with every shot.

Specifications:
  • Speed(400 GR.): 500 FPS
  • Kinetic Energy: 222 Ft-LBS
  • Weight: 9.9 LBS
  • Length: 28.5"
  • Width (Cocked): 3.6" Axle-Axle
  • Width(Uncocked): 7.75" Axle-Axle
  • Power Stroke: 15"
  • Powered By Hexcoil Cam System
  • Draw Force: 17 LBS
