Easton Axis 5MM Match Grade Arrows

In stock
Item Number
20-20058
As low as $21.83
Easton Axis 5MM Match Grade Arrows offer superior speed, penetration, and accuracy with their micro diameter design and precision components, including Match Grade HIT Collars, inserts, and X Nocks.
Easton Axis 5MM Match Grade Arrows with precision inserts and small diameter design for increased speed, penetration, and broadhead accuracy.
Easton Axis 5MM Match Grade Arrows with precision inserts and small diameter design for increased speed, penetration, and broadhead accuracy.

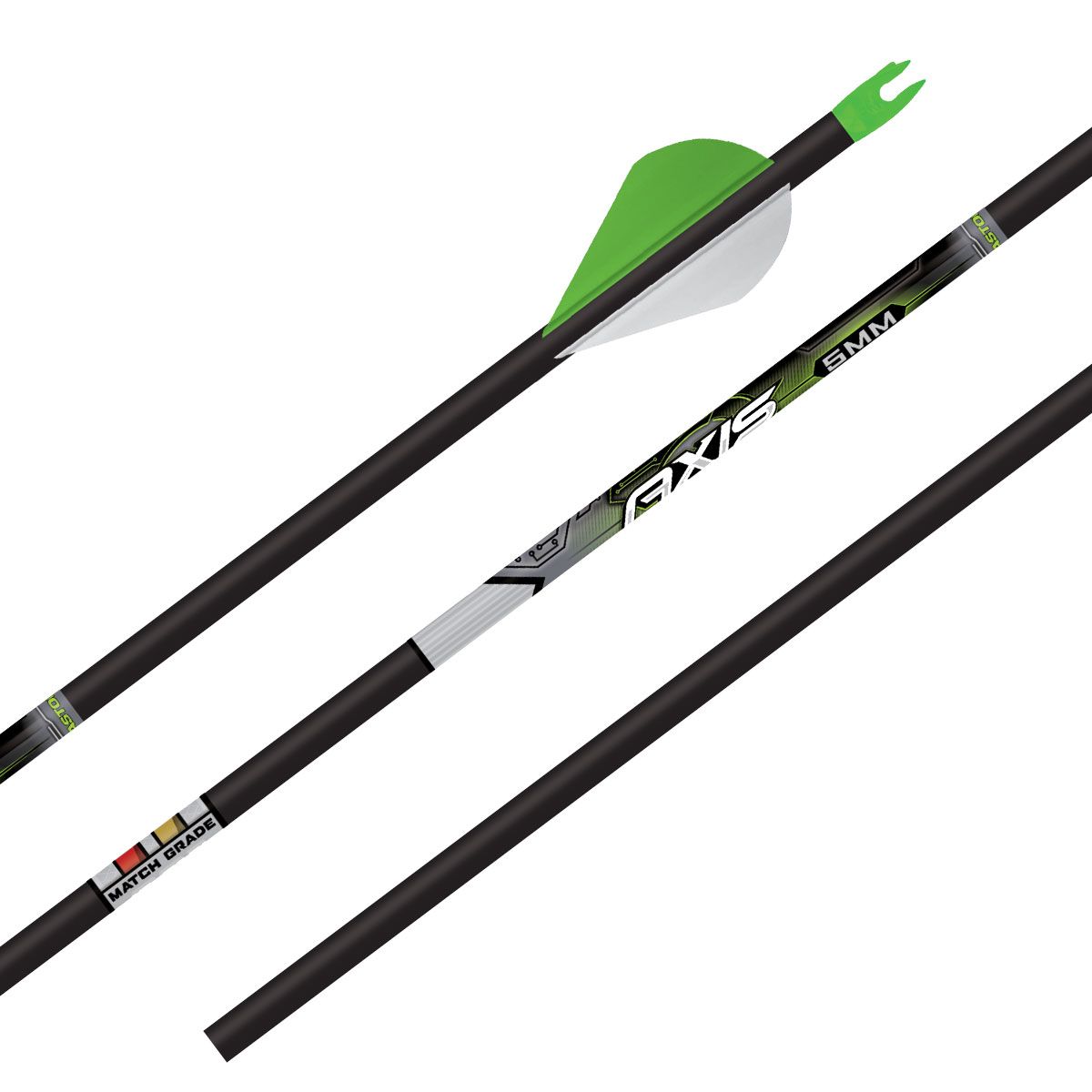

Easton Axis 5MM Match Grade Arrows

The Easton Axis 5MM Match Grade Arrows are the hands-down choice for hunters and target archers looking for unrivaled performance. These all-carbon arrows are designed for ultimate speed, penetration, and precision. With a small diameter and high-strength carbon-composite fibers, the Axis 5MM arrows deliver enhanced accuracy and deeper penetration with every shot.

Key Features:

  • Small Diameter Design: The 5mm micro profile reduces friction for more penetration and better accuracy, ensuring deeper shots on game.
  • Match Grade Accuracy: The Match Grade version includes precision components, including 5mm HIT 8-32 inserts and pre-installed 5mm X Nocks for enhanced accuracy.
  • Increased Penetration: The small diameter design allows for greater kinetic energy concentration, making the Axis 5MM the best choice for deeper and more effective shots.
  • Includes HIT Collars: Match Grade HIT Collars (13-21 grains) are included for added stability and front-of-center weight tuning, ensuring optimal arrow flight.

Specifications:

  • Straightness: ±.001”
  • Spine Sizes Available: 200, 260, 300, 340, 400, 500, 600, 700
  • Components: Includes 5mm HIT 8-32 inserts (16 grains), pre-installed 5mm X Nocks (9 grains), Match Grade HIT Collars (13-21 grains)
  • Material: High-strength carbon-composite fibers

Sold Separately: 5mm Brass HIT Break-off 8-32 Insert (50-75 grains), 5mm Aluminum 8-32 Half-out (25 grains), and 5mm Steel 8-32 Half-out (75 grains).

Sold Separately: 5mm Brass HIT® 8-32 Break-Off Insert (50-75 grains), 5mm Steel 8-32 Half-Out (75 grains), and 5mm Match Grade HIT Collar (13-21 grains).

Size Shaft Weight (GPI) Spine @ 28″ Span (Deflection in inches) Stock Length (Inches) Field Point (O.D. Inches) Match Grade HIT Collar Broadhead Adapter Ring Size (5 grains) O.D. (Inches) 5mm Half Out (Size)
600 7.2 0.600 30.5 17/64 #1 BAR 3 0.253 #1
500 8.1 0.500 31 17/64 #1 BAR 3 0.258 #1
400 9.0 0.400 31.5 17/64 #2 BAR 4 0.264 #2
340 9.5 0.340 32 9/32 #3 BAR 5 0.267 #2
300* 10.7 0.300 32.5* 9/32 #4 BAR 6 0.275 #2
260* 11.5 0.260 34* 9/32 #5 BAR 6 0.280 #2
200* 12 0.200 34* 9/32 #6 BAR 6 0.280 #2
