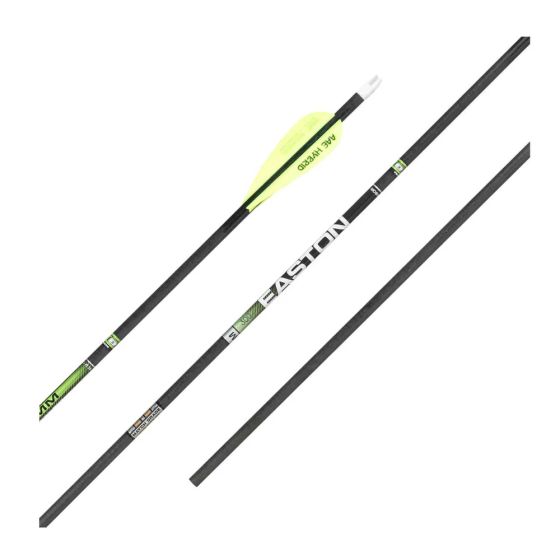

Easton Axis 5mm Match Grade Fletched Arrows w/ HIT Insert & Collar

From Easton’s Match Grade Pro Shop Series, the Axis 5mm is built for bowhunters who want proven small-diameter penetration, excellent wind performance, and repeatable spine consistency. Made in the USA with ACU-Carbon Uniform Spine and verified by Easton’s Five-Point straightness process, these arrows arrive hunt-ready with precision helical fletching and a reinforced HIT front end.

Why Axis 5mm Match Grade

• small-diameter .204" id for better penetration and less wind drift
• “beyond straight” ±0.001" match-grade straightness for confidence at distance
• acu-carbon uniform spine construction for consistent dynamic reaction
• factory helical fletched with aae hybrid 26 vanes for clean broadhead flight
• includes 5mm hit inserts and match grade hit collars for a durable, concentric build
• made in the usa

Specifications

• archery style: hunting
• construction: 5mm small-diameter uniform acu-carbon
• inside diameter: .204" (5mm)
• straightness: beyond straight ±0.001"
• fletching: aae hybrid 26 helical fletched vanes
• components included: 5mm hit 8-32 inserts (16 gr), 5mm x nocks (9 gr), match grade hit collars (13–21 gr by spine)

Available Spines (GPI • OD)

• 200 — 12.0 gpi • .286"
• 260 — 11.5 gpi • .280"
• 300 — 10.7 gpi • .275"
• 340 — 9.5 gpi • .267"
• 400 — 9.0 gpi • .264"
• 500 — 8.1 gpi • .258"
• 600 — 7.2 gpi • .253"

Pro Build Tips

• lightly chamfer shaft id, square ends after cutting, then dry-fit collars and inserts
• use slow-cure epoxy on hit inserts; align while curing and verify spin
• index nocks to broadhead flight; re-spin test after installing collars
