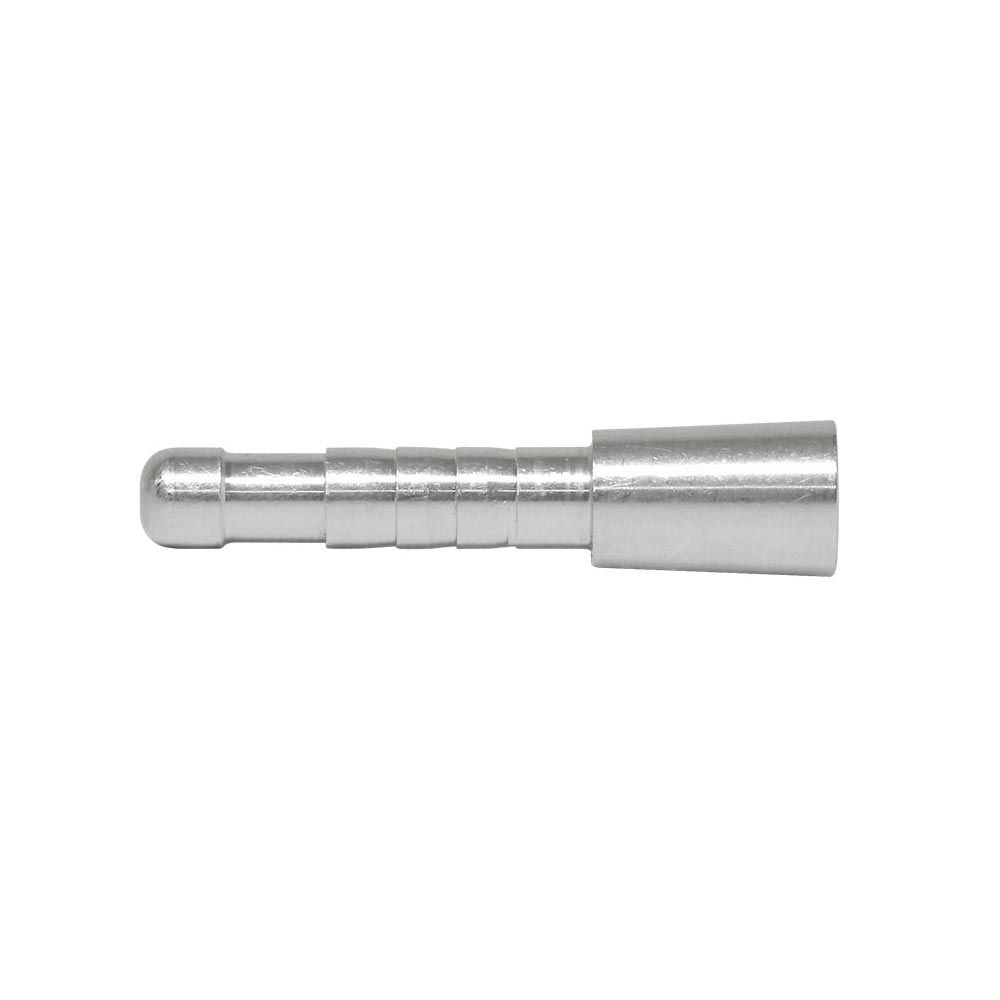

Easton 5MM 8-32 Aluminum Half Out Inserts
In stock
Item Number
25-30033
As low as
$21.99
Easton 5MM 8-32 Aluminum Half Out Inserts for 5mm Easton shafts. Adds F.O.C., weighs 25 grains, and uses AMO standard 8-32 threads. Sold in a 12-pack.
Easton 5MM 8-32 Aluminum Half Out Inserts | Increase F.O.C. with Precision
The Easton 5MM 8-32 Aluminum Half Out Inserts are designed to enhance your arrows with increased front-of-center (F.O.C.) weight for improved accuracy and flight performance. These inserts are specifically made for 5mm Easton shafts with a .204" ID, providing a precise fit for optimal arrow dynamics.
Key Features of Easton 5MM 8-32 Aluminum Half Out Inserts:
- Front-of-Center (F.O.C.) Enhancement: Adds weight to the front of the arrow for better balance and performance.
- Material: Crafted from durable aluminum, offering a lightweight option for precision archery.
- Thread Size: Uses AMO standard 8-32 threads and fits with 5/16" diameter field points for compatibility.
- Weight: Each insert weighs 25 grains, providing an ideal weight for fine-tuning arrow setups.
- Quantity: Sold in a 12-pack, making it easy to outfit multiple arrows for consistent performance.
Perfect for archers who need a reliable and lightweight insert that improves F.O.C. and arrow performance, the Easton 5MM 8-32 Aluminum Half Out Inserts are a top choice for precision shooting.
5MM FMJ Chart:
| Size | Shaft Weight (GPI) | Spine @ 28" Span (Deflection in inches) | Stock Length (Inches) | Field Point (O.D. Inches) | Match Grade HIT Collar (Size) | O.D. (Inches) | Half Out (Size) |
|---|---|---|---|---|---|---|---|
| 500 | 9.1 | 0.500 | 31 | 17/64 | 1 | 0.256 | #1 |
| 400 | 10.2 | 0.400 | 31.5 | 17/64 | 2 | 0.263 | #2 |
| 340 | 11.3 | 0.340 | 32 | 9/32 | 3 | 0.269 | #2 |
| 300* | 12.0 | 0.300 | *32.5 | 9/32 | 4 | 0.273 | #2 |
| 250* | 11.5 | 0.250 | *33 | 9/32 | 3 | 0.273 | #2 |
5MM AXIS Chart:
| Size | Shaft Weight (GPI) | Spine @ 28" Span (Deflection in inches) | Stock Length (Inches) | Field Point (O.D. Inches) | Match Grade HIT Collar | Broadhead Adapter Ring Size (5 grains) | O.D. (Inches) | 5mm Half Out (Size) |
|---|---|---|---|---|---|---|---|---|
| 600 | 7.2 | 0.600 | 30.5 | 17/64 | #1 | BAR 3 | 0.253 | #1 |
| 500 | 8.1 | 0.500 | 31 | 17/64 | #1 | BAR 3 | 0.258 | #1 |
| 400 | 9.0 | 0.400 | 31.5 | 17/64 | #2 | BAR 4 | 0.264 | #2 |
| 340 | 9.5 | 0.340 | 32 | 9/32 | #3 | BAR 5 | 0.267 | #2 |
| 300* | 10.7 | 0.300 | 32.5* | 9/32 | #4 | BAR 6 | 0.275 | #2 |
| 260* | 11.5 | 0.260 | 34* | 9/32 | #5 | BAR 6 | 0.280 | #2 |
| 200* | 12 | 0.200 | 34* | 9/32 | #6 | BAR 6 | 0.280 | #2 |
