Easton 5MM 8-32 Steel Half Out Inserts
In stock
Item Number
25-30034
As low as
$24.99

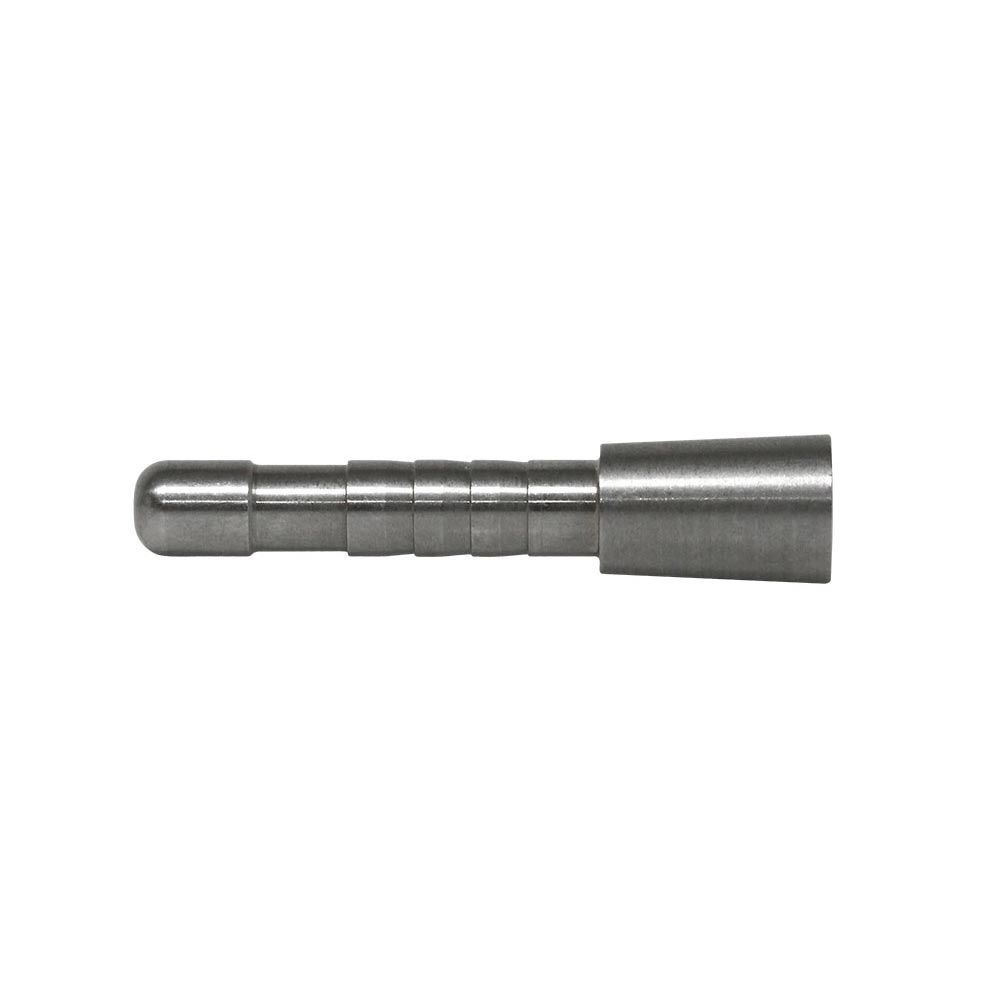

Easton 5MM 8-32 Steel Half Out Inserts are available in 75 grain stainless steel and 25 grain aluminum. Designed for 5mm arrows with 8-32 threading. Sold in a dozen bag.
Easton 5MM 8-32 Steel Half Out Inserts | Precision Inserts for 5mm Arrows
Enhance your arrow's performance with the Easton 5MM 8-32 Steel Half Out Inserts, designed specifically for 5mm arrows. These inserts are available in both stainless steel (75 grain) and aluminum (25 grain) versions, allowing you to customize the weight and balance of your arrows.
Key Features of Easton 5MM 8-32 Steel Half Out Inserts:
- Material Options: Choose between 75 grain stainless steel or 25 grain aluminum inserts to achieve the perfect balance for your setup.
- Thread Size: 8-32 threaded for a secure fit with compatible arrow shafts.
- Designed for 5mm Arrows: Perfectly fits Easton 5mm arrow shafts for improved arrow performance.
- Customization: Two sizes available for each material, providing flexibility for your preferred setup.
- Pack Size: Sold in a dozen bag for convenience and multiple arrow setups.
The Easton 5MM 8-32 Steel Half Out Inserts are the perfect choice for archers looking to fine-tune their arrows with precision, durability, and optimal performance.
5MM FMJ Chart:
| Size | Shaft Weight (GPI) | Spine @ 28" Span (Deflection in inches) | Stock Length (Inches) | Field Point (O.D. Inches) | Match Grade HIT Collar (Size) | O.D. (Inches) | Half Out (Size) |
|---|---|---|---|---|---|---|---|
| 500 | 9.1 | 0.500 | 31 | 17/64 | 1 | 0.256 | #1 |
| 400 | 10.2 | 0.400 | 31.5 | 17/64 | 2 | 0.263 | #2 |
| 340 | 11.3 | 0.340 | 32 | 9/32 | 3 | 0.269 | #2 |
| 300* | 12.0 | 0.300 | *32.5 | 9/32 | 4 | 0.273 | #2 |
| 250* | 11.5 | 0.250 | *33 | 9/32 | 3 | 0.273 | #2 |
5MM AXIS Chart:
| Size | Shaft Weight (GPI) | Spine @ 28" Span (Deflection in inches) | Stock Length (Inches) | Field Point (O.D. Inches) | Match Grade HIT Collar | Broadhead Adapter Ring Size (5 grains) | O.D. (Inches) | 5mm Half Out (Size) |
|---|---|---|---|---|---|---|---|---|
| 600 | 7.2 | 0.600 | 30.5 | 17/64 | #1 | BAR 3 | 0.253 | #1 |
| 500 | 8.1 | 0.500 | 31 | 17/64 | #1 | BAR 3 | 0.258 | #1 |
| 400 | 9.0 | 0.400 | 31.5 | 17/64 | #2 | BAR 4 | 0.264 | #2 |
| 340 | 9.5 | 0.340 | 32 | 9/32 | #3 | BAR 5 | 0.267 | #2 |
| 300* | 10.7 | 0.300 | 32.5* | 9/32 | #4 | BAR 6 | 0.275 | #2 |
| 260* | 11.5 | 0.260 | 34* | 9/32 | #5 | BAR 6 | 0.280 | #2 |
| 200* | 12 | 0.200 | 34* | 9/32 | #6 | BAR 6 | 0.280 | #2 |
